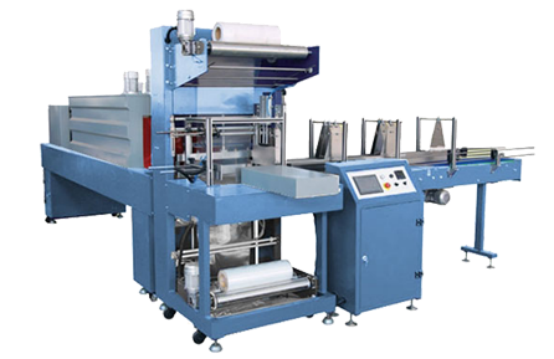

来宾BL-150A型全自动热收缩包装机

采用进口PLC程序自动控制,性能稳定,控制精确。具有自动输送进料,理瓶、收缩、冷却定型流程的全自动化功能。薄膜输送采用感应开关控制,可谓控送膜长度,减少损耗。输送电机采用进口变频器控制,实现无极调度。先进的螺旋风循环结构,三层隔热层处理,节约能源。加强型冷却定型通道,可使用产品迅速定型,方便储运。
立即咨询
18751110333
  • 来宾产品详情
  • 联系我们

产品描述

┃ Product Descriptions


采用进口PLC程序自动控制,性能稳定,控制精确。具有自动输送进料,理瓶、收缩、冷却定型流程的全自动化功能。薄膜输送采用感应开关控制,可谓控送膜长度,减少损耗。输送电机采用进口变频器控制,实现无极调度。先进的螺旋风循环结构,三层隔热层处理,节约能源。加强型冷却定型通道,可使用产品迅速定型,方便储运。

Adopting imported PLC program for automatic control, with stable performance and precise control. It has fully automated functions of automatic feeding, bottle sorting, shrinkage, cooling and shaping processes. The film conveying is controlled by an induction switch, which can be said to control the length of the film and reduce losses. The conveyor motor is controlled by an imported frequency converter to achieve stepless scheduling. Advanced spiral wind circulation structure, three-layer insulation treatment, energy-saving. Enhanced cooling and shaping channel, which can quickly shape products and facilitate storage and transportation.



产品详情

┃ Product Details




整机外形尺寸:

L5050*W3300*H2100

整机外包装尺寸主机:

L1220*W1000*H2250

收缩炉:

L3900*W1000*H2100

整机重量:

1.5t

最大包装尺寸:

L420*W280*H350

包装速度:

8-12pcs/min

输送带高度:

920(可调100)mm

工作电源功率:

三相五线 380v50HZ

工作气压:

0.6-0.8Mpa

整机功率:

20kw



Overall dimensions of the machine

L5050*W3300*H2100

Packaging size of the whole machine Host

L1220*W1000*H2250

Shrinkage furnace

L3900*W1000*H2100

Whole machine weight

1.2t

Maximum packaging size

L420*W280*H350

Packaging speed

8-12pcs/min

Belt height

920 (adjustable by 100) mm

Working power supply power

920 (adjustable by 100) mm

Working pressure

0.6-0.8Mpa

Whole machine power

20kw



包装效果展示

Packaging Effect Display

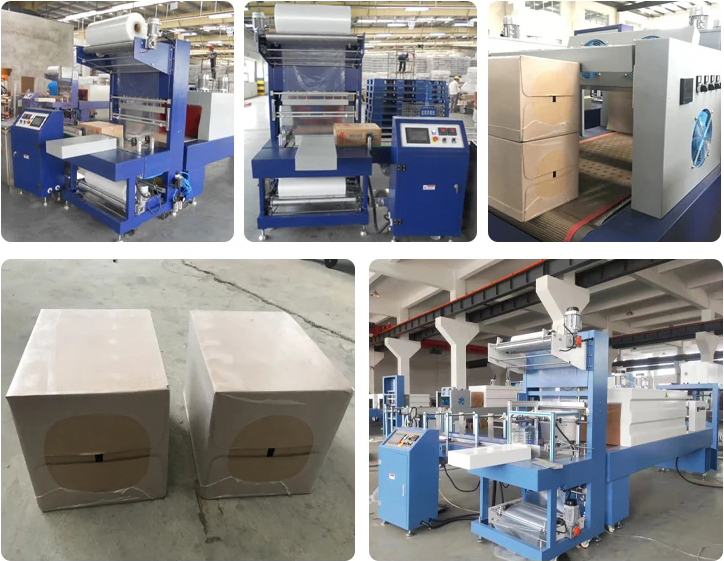

车间实拍

Workshop Shooting




关于我们

About us

我们是一家专业从事热收缩包装机、纸箱套标机、贴标机、码垛机、输送包装机、线等食品饮料调味品日化用品的后道包装机械专业制造商。先进的设计理念,可靠的质量服务,完善的管理制度,赢得了众多客户的赞许,“努力超越,追求卓越”是我们的不懈追求,“优质产品,星级服务”是我们对客户的承诺。

We are a professional manufacturer of heat-shrinkable packaging machine, Carton Packaging Machine, labeling machine, labeling machine, palletizer, conveyor line, etc..Advanced design concept, reliable quality service, perfect management system, has won the approval of many customers, "Strive to exceed, the pursuit of excellenceis our unremitting pursuit,"Quality products, star service is our commitment to customers.
